The OLT details page offers a view of top level hierarchy hardware for disaggregated types of OLT devices (e.g. Adtran SDX 6000 Series).

Network / Node / Card / OLT / Port / ONU

To access this view, from the left navigation bar select the (Operate) button. A list of all network equipment will populate in a tree view to the left of the map. From the list of equipment that appears, select an OLT device in your network by clicking on it. Alternatively, each piece of equipment can be searched for by entering the TID or IP address in the search bar at the top of the list of equipment.

The page will populate with the following information for the OLT hardware selected:

  • Uplink Utilization: Displays bandwidth utilization on the uplink ports installed in the OLT device.

  • Adtran Links: Displays links associated with the selected OLT.

  • OLT Details: Displays basic manufacturer's information about the OLT device and installed software.

  • Insights: Displays alerts (insights) associated with the selected OLT device.

The content of these tiles is described in detail in the following sections.

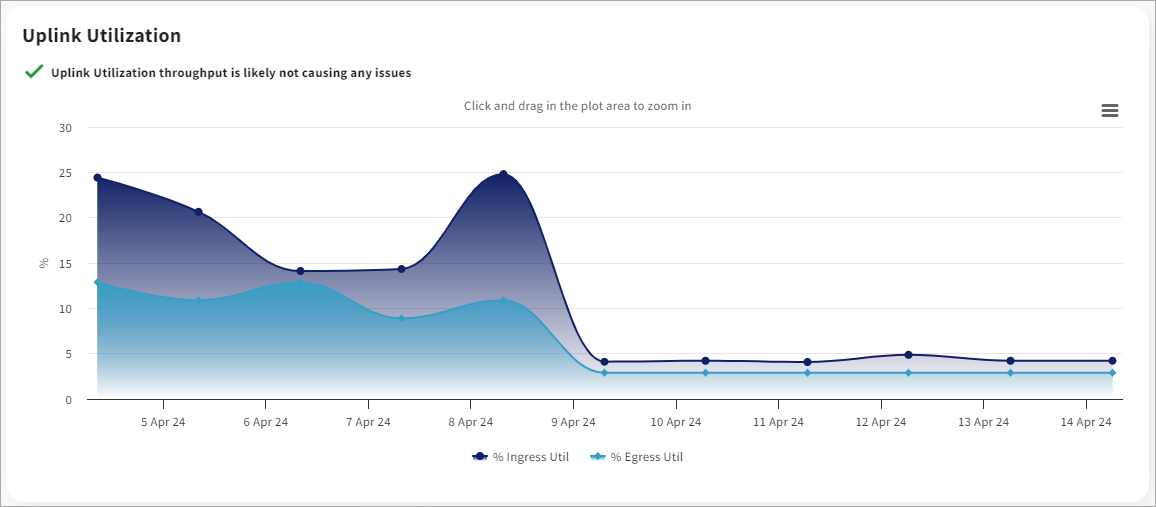

This tile shows a history of bandwidth utilization on the OLT's uplink ports over the past seven days.

A user can choose a specific port out of all uplink ports using a dropdown list below Uplink Utilization header. It will reload the corresponding chart with data from selected port. If there is only one uplink port avialable the chart will default to its data and hide the dropdown list.

The horizontal axis of this graph shows the progression of time across the most recent seven days while the vertical axis shows percent of utilization. The vertical scale will automatically adjust depending upon peak utilization recorded during the seven day period.

This chart is also color coded to distinguish ingress utilization (shown in blue) from egress utilization (shown in green). If utilization of bandwidth becomes high, a red threshold line will appear. Sweep the mouse cursor horizontally along the time series chart and the tool-tip will highlight ingress and egress utilization statistics for that specific moment in time.

You can also specialize the display at will to show only ingress or only egress data by selecting the text label or colored dot in the legend below the chart.

  • Select % Egress Util or the green colored dot to toggle the display of egress data on and off.

  • Select % Ingress Util or the blue colored dot to toggle the display of ingress data on and off.

Export or Print Table Data​

To export data from this tile to your local hard drive, select the hamburger menu icon ( ) near the upper right of the chart, and then choose an appropriate file format from the options displayed in the resulting drop-down list.

The following formats are available for export:

  • SVG: Scalable Vector Graphics, an image file format

  • PNG: Portable Network Graphics, an image file format

  • JPG: Joint Photographic Experts Group, an image file format

  • CSV: A comma-separated, raw text file

  • XLS: Microsoft Excel format

Additional options for alternate views of chart data are also available from the same hamburger menu (), and include:

  • View in full screen

  • Print chart

  • View data table

The Adtran Links tile displays a list of links related to the selected OLT. Links will only appear if the corresponding application is properly configured.

Link Name              Description

Mosaic Cloud Platform         Direct link to the OLT device inspect page in MCP for the selected OLT.

OLT Details​

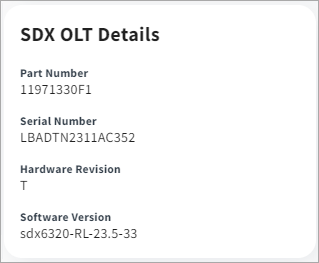

The OLT Details tile shows basic information about the OLT hardware and firmware installed. Available properties are defined in the following table.

Property Name     Description

Part Number        The part number associated with the OLT. e.g. 11971330F1

Serial Number          The serial number associated with the OLT. e.g. LBADTN2311AC352

Hardware revision       The revision of the hardware for a given Part Number. e.g. T

Software version      The software version installed on the device. e.g. sdx6320-RL-23.5-33

Insights​

The Insights tab displays a list of alerts across all network hardware. Found above this list are the "Top 5 Nodes by Insight Count" and "Top 5 Categories by Insight Count" charts.

Filters of your choosing can be applied by leveraging the various search fields placed just above the column headers. These search filters may be used individually or in combination to specialize the display to meet your needs.

Access the search field by selecting the adjacent button, then enter the search criteria in the text field that appears.

Top 5 Nodes by Insight Count Chart​

Displays the top 5 nodes for the insights table based on the current filter for the table. It's contents will change based on the filter selected in the insights table. Clicking on a segment of the donut chart will filter the contents of the table to the node's 'System Name'. Clicking anywhere on the chart will clear the node filter in the table below.

Top 5 Categories by Insight Count Chart​

Displays the top 5 categories for the insights table based on the current filter for the table. This bar chart has the active and cleared counts stacked for each of these top 5 categories. It's contents will change based on the filter selected in the insights table. Clicking on a bar will filter the contents of the table by the clicked insight category. Clicking anywhere on the chart will clear the category filter in the table below.

Insights - Table Columns Defined​

Each column of the table of insights displayed on screen is described below.

Severity​

A rating of the severity of the alert rated on a scale of 0-5. The significance of each rating is:

  • Severity 5: Critical
  • Severity 4: Major
  • Severity 3: Minor
  • Severity 3: Minor
  • Severity 2: Alert
  • Severity 1: Informational

System Name​

Top-level name of the network device.

Location​

The identifier of the network location associated with the insight. Exact format of the field will vary depending on the source location.

For example

  • Shelf/slot/port
  • Slot/port
  • RemoteID@Shelf/slot/port

Platform​

Hover over the displayed platform icon to view the platform's family and type. The icon will vary depending on the platform type.

For example

  • Platform Family: Total Access; Platform Type: TA5000
  • Platform Family: SDX; Platform Type: SDX 6320-16
  • Platform Family: Calix; Platform Type: Calix E7-Series

Category​

A category of network insights that enables filtering of insight groups based on the same classification.

For example

  • Intent Reality Mismatch
  • Physical Plant

Subcategory​

A subcategory of network insights that provides a detailed classification of insights within a specific category.

For example

  • Intent Reality Mismatch > Provisioning Concern
  • Physical Plant > Connection Issue

Insight​

A short description of the nature of the alert detected for this row.

See the Operate Detail Views - Insights Glossary for a list of all insight names and detailed descriptions for each.

State​

Insights presented are in one of three states: Active, Cleared, or Acknowledged.

  • Active: An active insight is one that has been detected in the most recent scan.
  • Cleared: Insights shown as cleared were not detected by the most recent scan. The system retains cleared insights for 30 days before automatically removing them from the display.
  • Acknowledged: An acknowledged insight is one that has been manually acknowledged by selecting the insight and selecting the Acknowledge option.

Insight Details Icon​

   Select this icon to reveal the Insight Details dialog. All key facts regarding this insight are displayed in an easy to read layout that includes a suggestion as to how the alert might be resolved.

Select the icon at the top of Insight Details to navigate to the device associated with this insight.

note

An intermittent insight is an insight that has previously been cleared, but has reoccurred.

note

Since MSI allows users to edit the field, the MSI TID could be different than the Operate TID.

Acknowledge / Unacknowledge Buttons​

The button is located just beneath the radio button selector for TID/IP near the top of the Insights panel.

To use this feature, choose one or more insight(s) and then select the button to change all selected insights to the Acknowledged state.

The button is located to the right of the Acknowledge button.

To use this feature, choose one or more insight(s) and then select the button to remove the Acknowledged state. This will set insights back to their default state where they display either Active or Cleared.

note

Both Active and Cleared insights may be in the Acknowledged state. If an Acknowledged and Cleared insight becomes Active again (intermittent), the Acknowledged state will only reset and show as Active if the severity increases.

Export Button​

The button is located just beneath the radio button selector for TID/IP near the top of the Insights panel.

Use this feature to export this current snapshot of insights to your local drive in CSV format. The exported data can be useful for purposes such as:

  • Sorting the list and delegating portions of it to task various personnel with resolving the alerts.

  • Using it as an offline scratchpad to make notes about your pursuit of the resolution for each alert.

note

The on-screen display is limited to the first 4mb of Insights data. When this cap is exceeded, a notification will appear with a reminder that this Export feature can be used to get the complete list of insights in CSV format.
